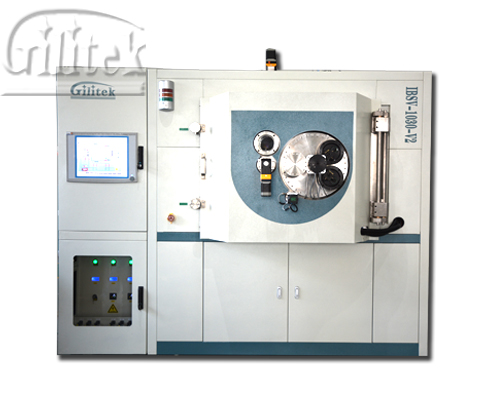

Ion Beam Source Sputtering Coating Machine (Vertical)

Details

MODE: IBSV-1030



CHARACTERS:

a)The baseplate is laid vertically and is monitored horizontally

b)The switching target is adjustable right and left to make sure the best distance between the center of the target and the Ion Beam Source

c)The Baseplate: 12 inch *1

d)Target: 2 or 3 targets and it's replaceable

e)Multi-optical path monitoring.

f)Workpiece holder:12inches






 Process parameter:

1)Vacuum system

a)The Base Vacuum Pressure:4.0×10-5Pa

b)The time used extracting to 10 Pa:≦ 10 minute

c)leakage rate:3.0×10-5Pa m3/sec

2control accuracy

a)Target rotation:0.005°

b)High Speed Fixture: <1000RPM

c)Encode: 12000lines;480000Counts/rev

d)MASK rotation:0.005°

e)Shutter:  position switch

3)OMS

a)Wavelength Range:380nm~1650nm

b)Light intensity stability :white light< 0.1%,laser< 0.02%

c)Wavelength resolutionwhite light0.2nm,laser0.1nm

d)Wavelength accuracywhite light0.2nm ,laser0.1nm




Gilitek has the world's leading vacuum coating technology, has applied for a number of patents. Production of a variety of high quality coating equipment, coating equipment at the same time maintenance and transformation and coating process consulting services and other services.

Company produces various types of coating machine is for specific markets and customer groups to develop new products, and widely used in the market of coating equipment compared with the following prominent advantages: monomer precision synchronization monitoring, real-time film thickness distribution control. Therefore, suitable for all kinds of high difficulty coating products. The larger the area of a single piece of film products, the advantage of the more obvious. The electron beam coating machine also increases the double side coating function, which is suitable for the end face coating of the semiconductor laser.

Gilitek adhering to the quality first, the credibility of the supremacy of the philosophy of attention in the coating industry for decades, I will use their own technology advantages, according to customer demand, the production of various types of high-end precision coating equipment, breaking at present in the market for high-end Coated machine all by foreign enterprise monopoly situation, welcome from all walks of life to inquire!
